SPECIAL FEATURES
  • Thermal insulation results in substantial energy savings in air-conditioned and heated buildings
  • Impact resistance of polycarbonate flat sheet is 250 times greater than float glass and 30 times that of acrylic materials
  • Low Profile
  • Double or triple glazed
  • UV-stabilised polycarbonate
  • Excellent fire hazard properties
  • UV-stabilised polycarbonate for long-term weather ability
  • Filters out 99.9% of ultra violet light



 BASE

Base available to suit tile, decking and corrugated iron roof and can be made of zinc, galvanised iron or in any of the colour bond colours

INSTALLATION

Installation can be done by us or we’ll supply the unit only

Fire Ratings: AS1530.3/1999

Polycarbonate sheets have been tested in accordance with the Australian Standard 1530.3/1999. The test is standard for checking fire hazard properties of materials and covers four categories.

Load Tests: ASINZS: 1562.3/1996

Polycarbonate sheets have been tested in accordance with the Australian Standard AS/NZS: 1562.3/1996

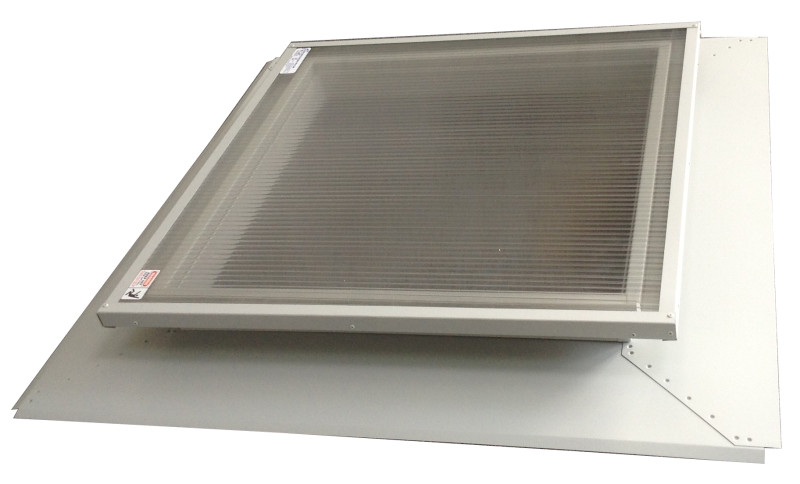

Thermal glazer(2)
UV-filter

STANDARD SIZES – Custom built sizes are also available

CODE SQUARE CODE RECTANGLE
CFR 400 x 400 CFR 500 x 800
CFR 500 x 500 CFR 600 x 800
CFR 600 x 600 CFR 500 x 1100
CFR 800 x 800 CFR 600 x 1100
CFR 900 x 900 CFR 800 x 1100
Test
1. Ignitability
Test index 0-20
2. Spread of Flame
Test index 0-10
3. Heat Evolved
Test index 0-10
4. Smoke Developed
Test index 0-10
Results 0 0 0 3
sky light
For more details on our advanced skylights and Custom Access Hatch or Custom Dome Hatch call (03) 9761 1281.
